Snow Melting Solutions by U.S. Floor Heating



Put the shovel away for good and let the snow simply melt away. U.S. Floor Heating brings back the beauty of winter with out all the hassle of shoveling your walkways and driveways.

MeltMat is a Snow Melting System designed for New and Existing Driveways/Walkways of all types. With Snow Sensor Technology, the MeltMat System offers simple Outdoor and Indoor Controller Options. The MeltMat System will be designed specifically for you driveway/walkway to help maximize value. U.S. Floor Heating offers both a 120V and 240V MeltMat System.

Click here for our Electric Snow Melting Online Quote which now avaiable!

Please feel free to chat with us if you have any questions:



New or Existing Driveway/Walkway Installation:

MeltMat will work with nearly any type of driveway/walkway, including: Tile, Concrete, Pavement, Blacktop, and more.

Existing Driveway/Walkway Installation. Installing into an existing driveway/walkway is a straightforward solution that will not jeopardize the integrity of the driveway or walkway. Installation is done by sewing a 1/2 inch wide slot that goes up to 2 inches deep so that the rebar frame will not be cut. The heating element is then sealed in, allowing the cable to be placed directly into the existing driveway/walkway.





Controller Options:



Outdoor Controller	Indoor Controller



Outdoor Controller System has a Snow Sensor which will activate the MeltMat as snow begins to land on the driveway/walkway with an outdoor manuel override option.

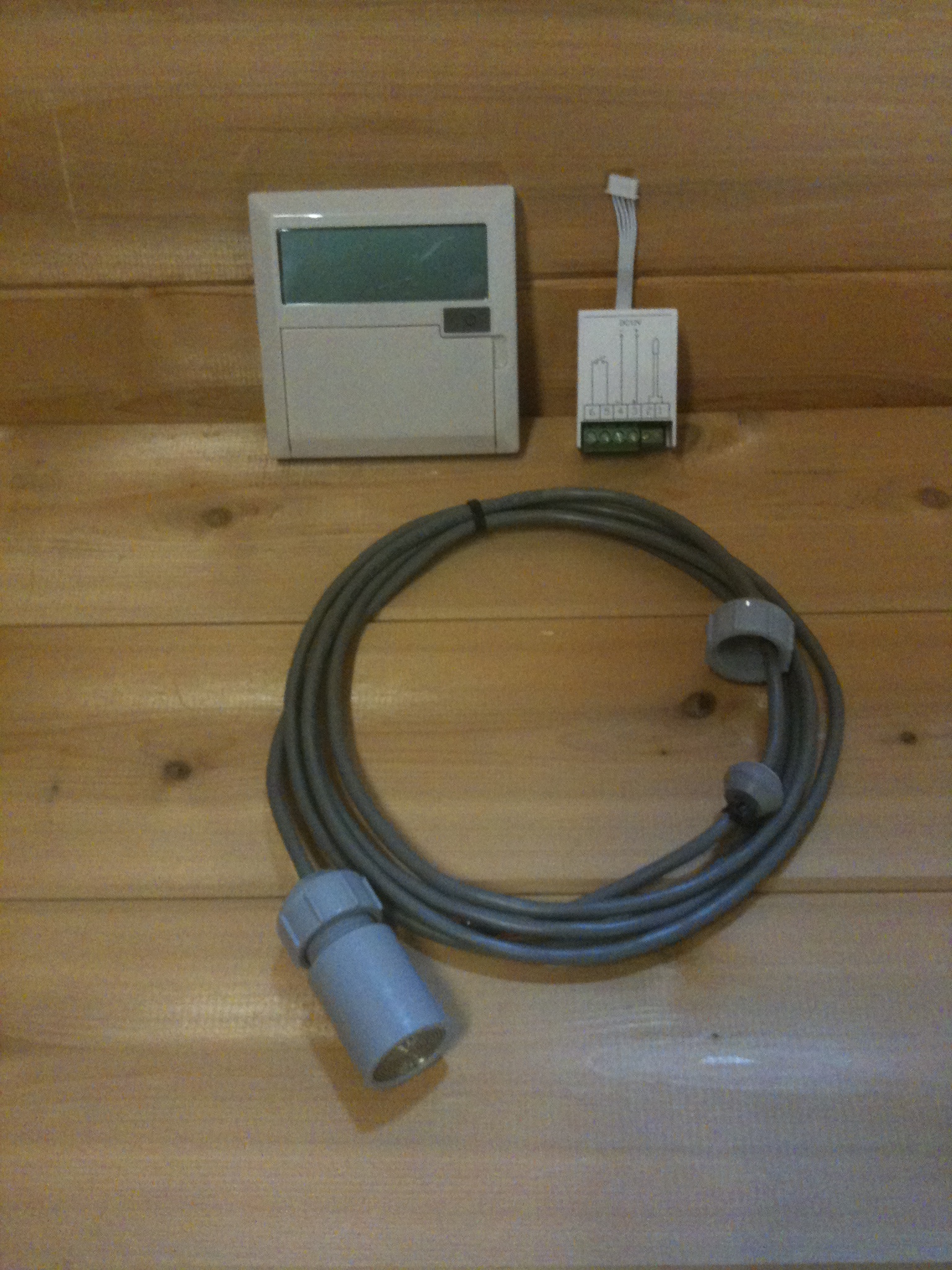

Indoor Controller System also has an Automatic Snow Sensor to activate the MeltMat as snow begins to land on the driveway/walkway. Additionally, from the comfort of your home you can program the system for vacation settings to prevent snow melting when you do not want them.

A Large Box Controller may l be needed based on your coverage area.



Power Options:

The amount of amps required are based on your area in square feet. If the amps needed exceed 16 amps, then the Large Area Box will be required to run the snow melting system - indicated by the red #.

120V - Cover up to 40 sq'ft' with Indoor/Outdoor Controller, 45 sq'ft' and above requires the Large Area Box

Area in sq' ft'	10	20	30	40	45	75	100	150	250
Amps needed	4	7	10	14	17	25	34	40	83







240V - Cover up to 90 sq'ft' with Indoor/Outdoor Controller, 100 sq'ft' and above requires the Large Area Box

Area in sq' ft'	20	40	60	80	90	100	150	200	250	300	350	400	500
Amps needed	4	7	10	14	15	17	25	34	42	50	59	67	84



Coverage Area:

MeltMat may be installed to cover the entire driveway/walkway or partial portions of the driveway/walkway in a tire formation, helping limit the amount of square footage needed.

Full Coverage for a driveway/walkway will keep the entire are completely free of snow, whereas tire track coverage will keep clear a path for a car and prevent snow build up against the garage door and base of the street that often gets covered by plows.

Full Coverage for Walkway and Driveway	Full Coverage for Driveway only





Tire Track Formation with Partial Walkway Coverage	Tire Track Formation for Driveway only



Snow Melting Mat Tech Info:

Coverage Area	9 to 113 Sq'ft per unit
Width	18' and 30' Inch
Cable Thickness	1/4' Inch
Volt	120 or 240
Watt per Sq'ft	35 and 45

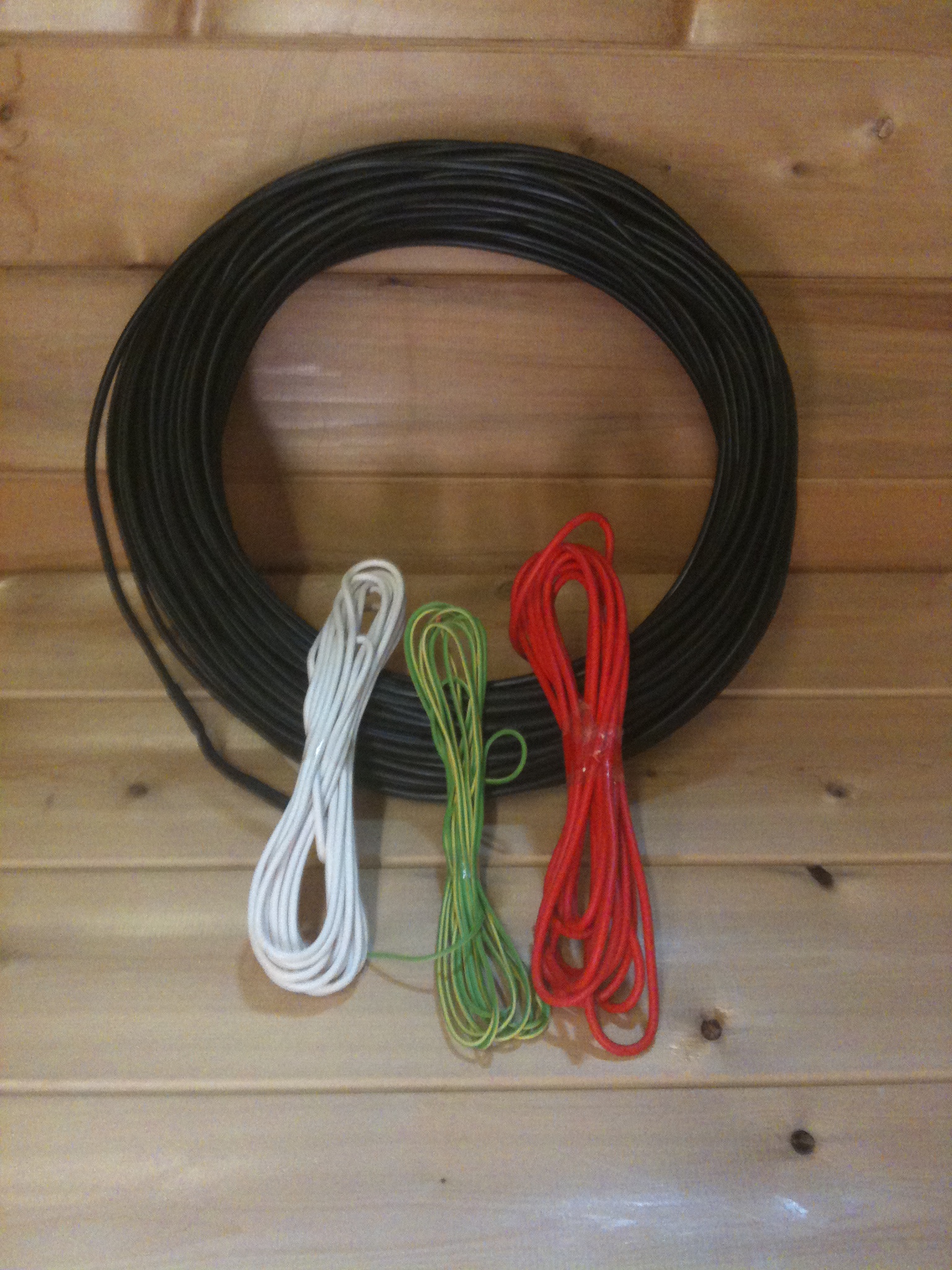

MeltMat	Loose Cable

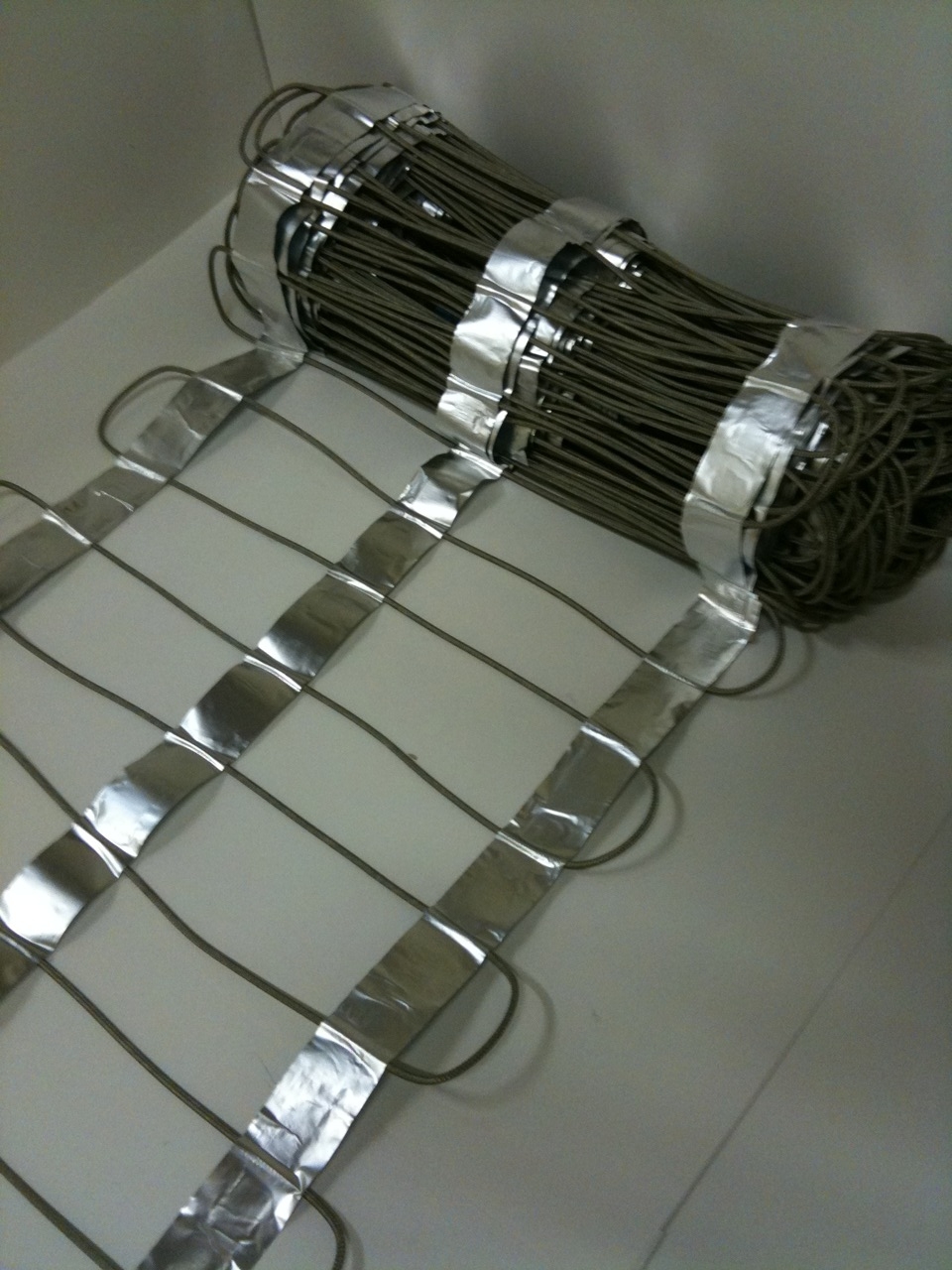

High quality heating cables are woven into 30 cm or 50 cm wide mats which are between 2 and 24 meters long. The spacing of the wires is 7 cm apart. The flexible mesh have adhesive in the back in order to hold the product layout to the surface during installation. The cold leads are 3 meters long.



MeltMat is designed to heat the surface of outdoor area to temperatures snow and ice cannot freeze upon.

MeltMat systems are made from high quality DuPont heating cable insulation allows for high wattage output.

With the Snow MeltMat, flexible fiberglass mesh is used to arrange the heating cables in an easily shaped mat.
